| Model |
|
| Hover to enlarge image |
| Dimensions |
|
| Hover to enlarge image |

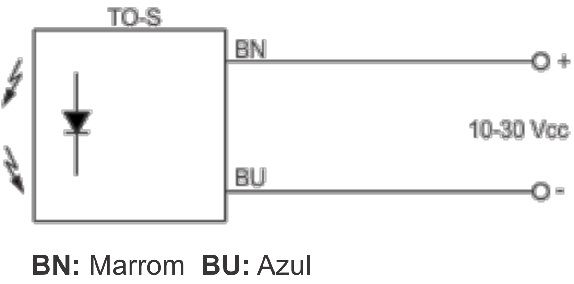

| Electrical Connection |
|
| Hover to enlarge image |
TR20K-18GI70-S_TO_CE
| Technical Features | |||
| Partnum | 6000009696-SE | ||
| System | Thru-beam (transmitter) | ||
| Manufactorer | Sense | ||
 Accessories | |||
| Accessories | Power supply KD-2401 Note: Accessory not included, order separately |
||
| Data Output | |||
| Sensitivity adjustment | No | ||
| Electrical Characteristics | |||
| Power supply | 10 to 30 Vdc | ||
| Ripple | 10 % | ||
| Current consumption | <20 mA | ||
| Network frequency | 50 to 60 Hz | ||
| Electrical Connection | |||
| Connection | Cable 2 m | ||
| Number of wires | 2 wires | ||
| Housing | |||
| Operating temperature | 0°C to +60°C | ||
| Protection rate | IP 67 | ||
| Enclosure | Metallic Threaded | ||
| Enclosure options | Plastic Threaded | ||
| Mechanical Characteristics | |||
| Diameter | M18 | ||
| Sensing distance | 20 meters | ||
| Minimum object | Ø8 mm | ||
| Weight | 155 g | ||
| Thread type | M18 x 1mm | ||
| Optical Data | |||
| Emitted light | Red | ||
| Signaling | |||
| Signalling | Back led | ||
| COMMENTS | |||
| Product with CE certification | |||
