| Model |
|
| Hover to enlarge image |

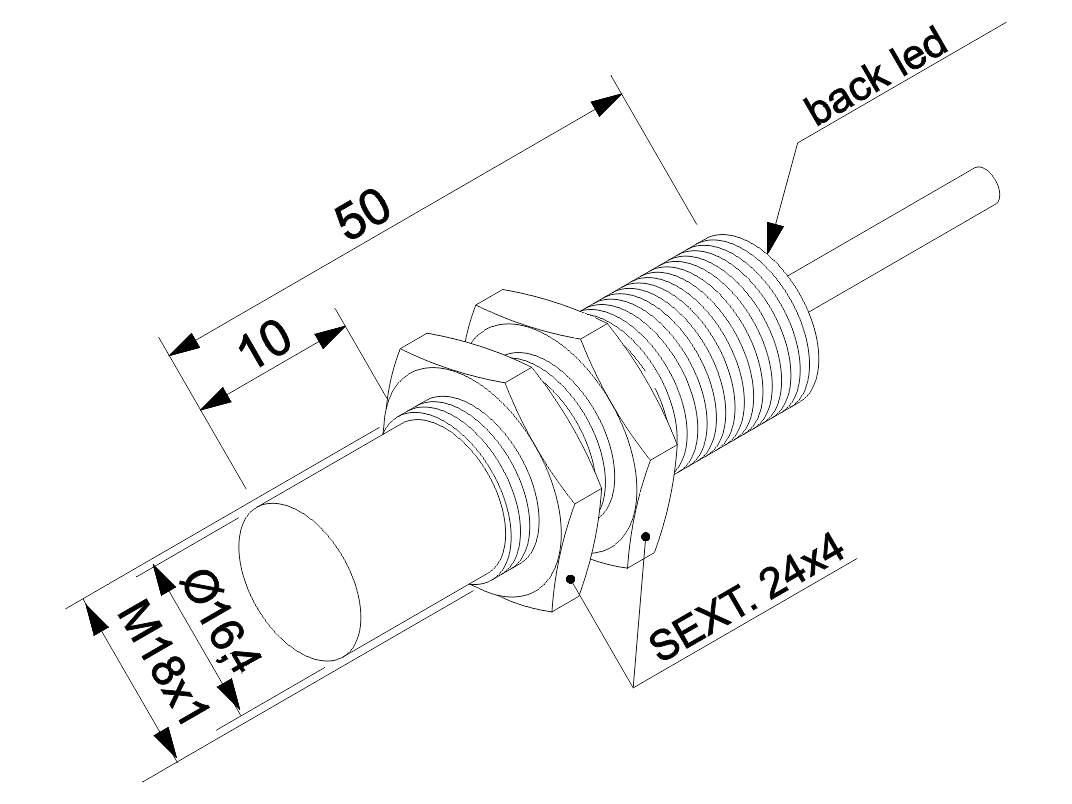

| Dimensions(Unit:mm) |
|
| Hover to enlarge image |

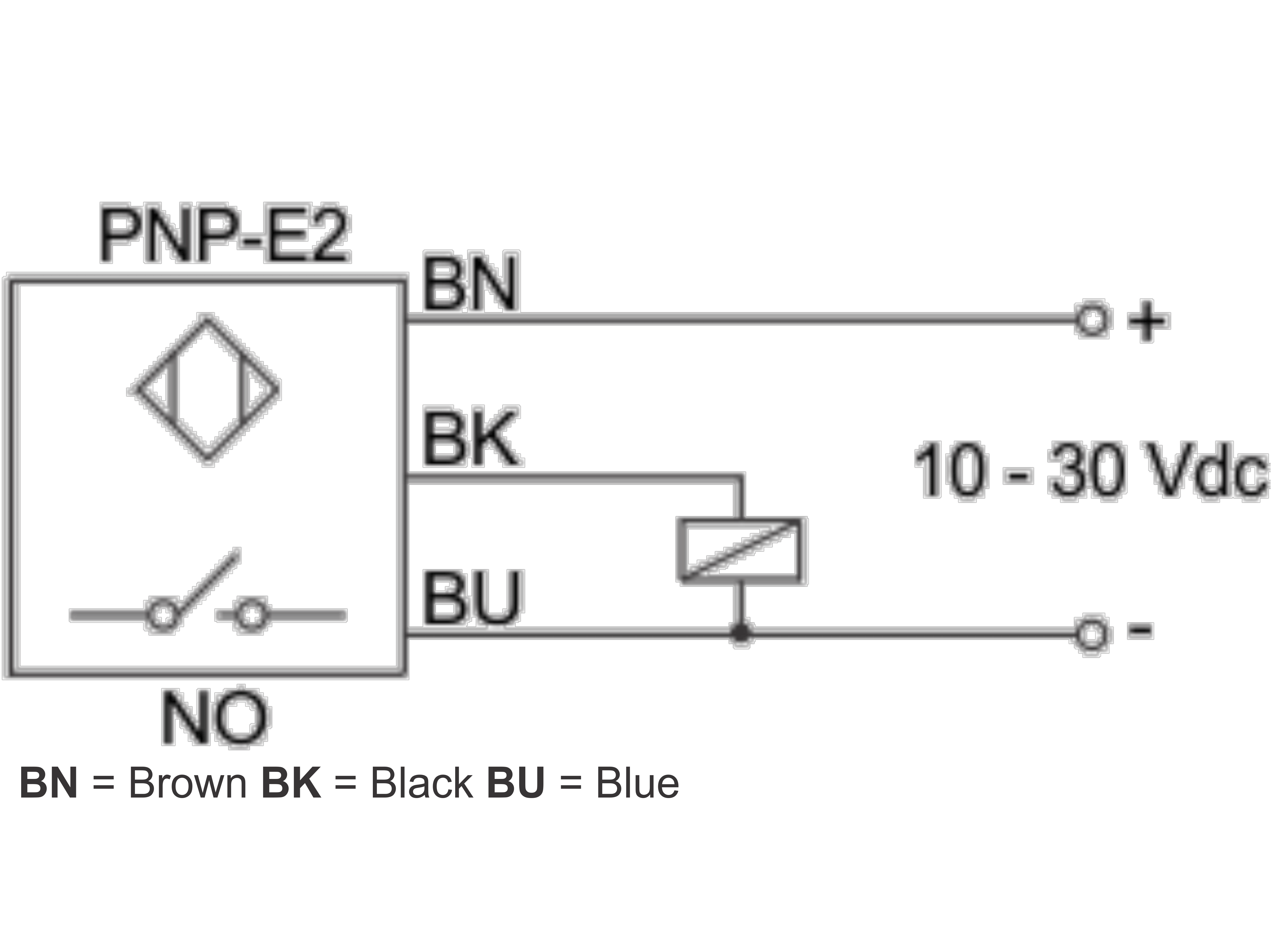

| Electrical Connection |
|
| Hover to enlarge image |
PS8-18GI50-E2-Ex
| Technical Features | |||
| Partnum | 5000005415-SE | ||
 Signaling | |||
| Signalling | Back led | ||
| Data Output | |||
| Electrical connection | DC - PNP | ||
| Contact Type | NO | ||
| Max. switching current | 200 mA | ||
| Output protection | Short circuit and reverse | ||
| Sensor voltage drop (load powered) | <2 V | ||
| Max. switching frequency | 200 Hz | ||
| Electrical Characteristics | |||
| Supply voltage | 10 to 30Vdc | ||
| Ripple | ±10 % | ||
| Current consumption | <10 mA | ||
| Electrical Connection | |||
| Electrical connection | Cable | ||
| Cable length | 2 m PVC | ||
| Cable length options | PVC 6 m PVC 10 m PVC 15 m PVC 20m PVC 25 m |
||
| Number of wires | 3 wires | ||
| Housing | |||
| Enclosure | threaded; brass with nickel plating | ||
| Operating temperature | - 25 °C to + 70 °C | ||
| Protection class | IP67, IP69K | ||
| Housing options | GX (stainless steel), GT (PTFE), GP (plastic) | ||
| Tube length | 50 mm | ||
| Ex Protection | Dustproof by enclosure | ||
| Marking | Ex tb IIIC T100 ºC Db IP65 | ||
| Ex protection class | IP65 | ||
| Ambient temperature Ex | - 5 °C to + 70 °C | ||
| Recommended tightening torque | 3 Nm | ||
| Mechanical Characteristics | |||
| Diameter | M18 | ||
| Sensing distance Sn | 08 mm | ||
| Mouting | Not flushed | ||
| Hysteresis | ± 5 % | ||
| Repeatability | <0,01 mm | ||
| Operational distance | 6,48 mm | ||
| Standard object | 24x24 mm | ||
| Cable options | PU | ||
| Weight | 150 g | ||
| Thread type | M18 x 1 mm | ||
| External diameter of cable | 4 mm | ||
| Application | Common industrial areas and atmospheres with combustible dust | ||
| Marking | |||
| Certificate | NCC 24.0194 X | ||
| Validity | 16/05/2027 | ||
| for flammable dust | Ex tb IIIC T100°C Db IP65 | ||
